The rudder is a movable control surface located on the vertical stabilizer at the tail of an aircraft. Its primary function is to control the aircraft’s yaw, which is the side-to-side movement around its vertical axis. In simpler terms, the rudder helps the aircraft turn left or right. This critical control ability is particularly essential during various phases of flight, including takeoff, landing, and navigation.
The operation of the rudder relies on the principles of aerodynamics. When a pilot inputs a command through the aircraft’s controls, the rudder deflects to either side. This deflection affects the airflow over the vertical stabilizer, creating a force that induces yaw. The pilot can strategically use the rudder to counteract adverse yaw effects during turns and maintain a coordinated flight.
Understanding the functions of the rudder is crucial for pilots to maintain control and stability, especially in challenging weather conditions or when encountering turbulence. The rudder plays a vital role in preventing uncontrollable spins and maintaining proper alignment with the desired flight path.
During takeoff, the rudder assists in keeping the aircraft on the runway centerline, ensuring a straight and controlled departure. In crosswind conditions, skilled pilots skillfully use the rudder to counteract the forces trying to push the aircraft off course. Similarly, during landing, the rudder is crucial for aligning the aircraft with the runway and ensuring a smooth touch down.
It’s important to note that the rudder works in conjunction with other control surfaces, such as ailerons and elevators, to provide complete control over the aircraft’s movements. Together, these surfaces enable precise maneuvers and adjustments that are essential for safe and efficient flight.
How does a rudder help control yaw motion and flight direction
A rudder plays a crucial role in controlling the yaw motion and flight direction of an aircraft. Yaw motion refers to the side-to-side movement of an aircraft’s nose, akin to a swinging motion around its vertical axis. Effectively managing yaw is essential for maintaining stable flight and ensuring the aircraft moves in the intended direction.
The rudder is typically located at the trailing edge of the vertical stabilizer at the rear of the aircraft. Its primary function is to control the yaw motion by deflecting left or right. This deflection redirects the airflow over the vertical stabilizer, creating a force that induces the desired yawing motion.
One of the key principles behind the rudder’s operation is the manipulation of aerodynamic forces. As an aircraft moves through the air, it encounters resistance and varying air pressures on different surfaces. The vertical stabilizer, with the rudder attached, plays a vital role in maintaining stability by counteracting the forces that could lead to uncontrolled yawing.
The rudder is linked to the aircraft’s control system, allowing the pilot to input commands for left or right rudder deflection. These inputs are translated into movements of the rudder surface, altering the aerodynamic forces acting on the vertical stabilizer. This, in turn, influences the aircraft’s yaw motion, providing the pilot with a means to control the heading or direction of the aircraft.
During flight, various factors can contribute to unwanted yaw motion, such as wind gusts or asymmetrical thrust from the engines. The rudder serves as a critical tool for pilots to counteract these forces and maintain the desired flight path. Additionally, during takeoff and landing, the rudder is instrumental in aligning the aircraft with the runway and ensuring a smooth transition between different phases of flight.
In some aircraft, especially larger ones, there may be multiple rudders or additional control surfaces like spoilers that work in conjunction to manage yaw and enhance overall control. The coordination of these surfaces is carefully orchestrated to provide optimal control and stability throughout the flight envelope.
The parts and components that make up an aircraft rudder
An aircraft is a marvel of engineering, a symphony of interconnected parts working in harmony to defy gravity and soar through the skies. At the heart of its maneuverability lie the ailerons, elevator, and rudder, each playing a crucial role in controlling the aircraft’s movement.
The ailerons are hinged control surfaces on the wings, typically situated on the trailing edge. Their primary function is to control the roll of the aircraft, allowing it to tilt or bank to the left or right. When the pilot manipulates the control yoke or stick, the ailerons respond, altering the lift on the wings and initiating the desired roll.
Opposite to the ailerons are the elevator, usually located on the horizontal stabilizer at the tail of the aircraft. The elevator controls the pitch, determining whether the aircraft’s nose points up or down. Pulling back on the control yoke raises the elevator, pitching the nose up, while pushing it forward lowers the elevator, causing the nose to dip.

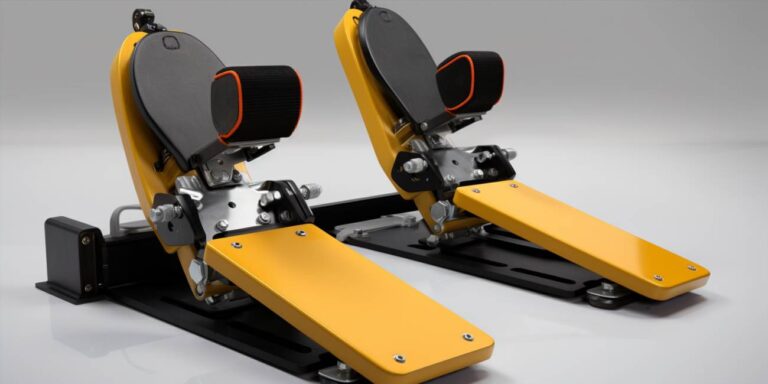

Connected to the elevator is the tail fin, a vertical stabilizer that houses the rudder. The rudder is responsible for controlling the yaw, or the left and right movement of the aircraft’s nose. When the pilot turns the rudder pedals, the rudder swings to the left or right, inducing a yawing motion.
Complementing these control surfaces are the flaps, strategically positioned on the wings. Flaps serve multiple purposes, including increasing lift during takeoff and landing, enhancing maneuverability, and allowing the aircraft to maintain control at lower speeds. Pilots deploy flaps based on the phase of flight and specific requirements.
Now, let’s delve into the fuselage, the central structure that binds these control elements together. The fuselage houses the cockpit, where the pilot and co-pilot operate the controls, navigate, and communicate. Additionally, it accommodates passengers, cargo, and crucial components such as the engine and avionics.
Imagine the fuselage as the aircraft’s spine, providing support and connecting the wings, tail, and other components. It is not merely a hollow tube; rather, it incorporates structural integrity, aerodynamics, and functionality, contributing significantly to the aircraft’s overall performance.
Rudder design requirements and engineering considerations
When delving into the rudder design requirements for marine vessels, a meticulous approach is paramount. The hydraulic pneumatic powered rudder system stands as a pivotal component, demanding precise engineering considerations.
First and foremost, the rudder design necessitates a harmonious integration with the overall naval architecture. The hydrodynamic profile plays a pivotal role in ensuring optimal maneuverability. It must strike a balance between responsiveness and stability, accommodating the vessel’s size and intended use.
One critical consideration lies in the material selection for the rudder. The material must exhibit robust corrosion resistance, given its constant exposure to seawater. Stainless steel alloys, for instance, are often favored for their durability and anti-corrosive properties.
Efficiency in the rudder control system is paramount, and this is where the hydraulic pneumatic powered mechanism comes into play. This system provides the necessary force for rudder movement, offering a dynamic response to steering commands. The hydraulic aspect ensures fluidity in motion, while the pneumatic element adds a layer of reliability, especially in emergency scenarios.
The integration of sensors becomes crucial in modern rudder design. These sensors facilitate real-time feedback on the rudder’s position, angle, and response to external forces. Such data is invaluable for enhancing navigation accuracy and safety, aligning with the growing trend of smart ship technologies.
Moreover, the rudder’s structural integrity must withstand not only hydrodynamic forces but also potential impacts, such as collisions or debris encounters. Reinforcements and impact-absorbing materials play a pivotal role in mitigating the risk of damage to the rudder system.
Considering the operational conditions at sea, a reliable power supply for the hydraulic pneumatic system is paramount. Redundancy measures and fail-safes are incorporated to ensure continuous functionality, even in challenging maritime environments.
In terms of maintenance, accessibility to key components of the rudder system is a key design consideration. Engineers strive to optimize ease of inspection and repair, minimizing downtime for vessels and enhancing overall operational efficiency.
